Compound Balanced Belt

Categories:

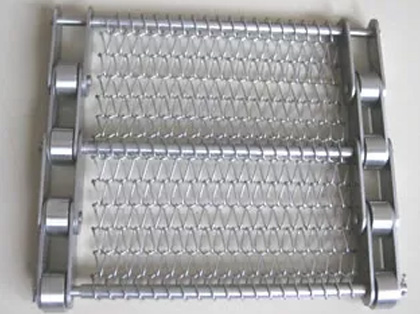

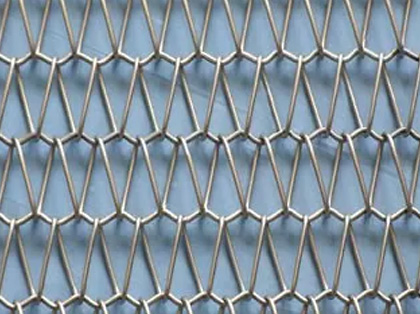

Balanced Weave Conveyor Belt also called balanced belt, it consists of a series of alternating single left-hand and right-hand spirals joined together by a cross-rod connector. With its virtually unlimited choice of mesh selection, it has many advantageous characteristics that make it the most preferred construction for almost any application. It offers a high tensile strength, excellent tracking and maximum flexibility that allows for true belt travel. It is adaptable with several different edge treatments and special attachments.

Applications of Balanced Belt It is mostly used in food processes such as annealing glass, heat treating and drying. It is also used in baking bands. It is used in medium load applications ranging 40 – 1500 degree F. It is too much economical for medium temperature and load conditions.

Sr No. Specifications No. Of Spirals per feet No. Of Cross-rods per feet Spiral wire dia Cross wire dia
1 B-12-12-10-08 12 12 10 swg 08 swg
2 B-12-12-3×2-10 12 12 Flat wire of 3×2 mm 10 swg
3 B-18-12-3×2-10 18 12 Flat wire of 3×2 mm 10 swg
4 B-24-19-10-09 24 19 10 swg 09 swg
5 B-24-18-10-10 24 19 10 swg 10 swg
6 B-24-19-12-10 24 19 12 swg 10 swg
7 B-24-18-14-12 24 18 14 swg 12 swg
8 B-30-15-10-10 30 15 10 swg 10 swg
9 B-36-18-3.5×1.5-10 36 18 Flat wire of 3.5×1.5 mm 10 swg
10 B-36-20-3×2-10 36 20 Flat wire of 3×2 mm 10 swg
11 B-36-20-12-10 36 20 12 swg 10 swg
12 B-36-18-10-10 36 18 10 swg 10 swg
13 B-36-15-10-10 36 15 10 swg 10 swg
14 B-36-24-16-14 36 24 16 swg 14 swg
15 B-36-18-14-12 36 18 14 swg 12 swg
16 B-60-40-2×1.5-14 60 40 Flat wire of 2×1.5 mm 14 swg
17 B-60-40-16-14 60 40 16 swg 14 swg
18 B-60-24-16-14 60 24 16 swg 14 swg
19 B-60-28-18-16 60 28 18 swg 16 swg
20 B-72-24-14-12 72 24 14 swg 12 swg
21 B-72-24-16-14 72 24 16 swg 14 swg
